The symbols and thread designations associated with grease fittings play a critical role in proper lubrication, sealing, and equipment reliability. For maintenance professionals, engineers, and OEMs, understanding grease fitting symbols helps ensure the correct fitting is selected for the application — preventing leaks, cross-threading, and premature equipment failure.
Grease fitting symbols are shorthand references to:
- Thread type
- Sealing method
- Installation characteristics
While these symbols are commonly used across lubrication catalogs and technical drawings, they’re not always well understood. Below is a clear breakdown of the most commonly referenced grease fitting symbols and abbreviations used in industrial lubrication.
Common Grease Fitting Symbols and Their Meanings

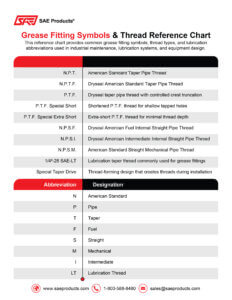

The table below outlines widely used grease fitting symbols along with their technical definitions. These symbols typically refer to pipe thread standards, sealing styles, or special thread-forming designs.
| Symbol | Meaning |
| N.P.T. | American Standard Taper Pipe Thread. |
| N.P.T.F. | Dryseal American Standard Taper Pipe Thread. |
| P.T.F. | Same as N.P.T.F., except full thread length has controlled crest truncation to provide metal-to-metal sealing. |
| P.T.F. Special Short | Same as P.T.F. Short, except one full thread has been removed to accommodate shallow tapped holes. |
| P.T.F. Special Extra Short | Same as P.T.F. Short, except two full threads have been removed for very limited thread depth applications. |
| N.P.S.F. | Dryseal American Fuel Internal Straight Pipe Thread. |
| N.P.S.I. | Dryseal American Intermediate Internal Straight Pipe Thread. |
| N.P.S.M. | American Standard Straight Mechanical Pipe Thread. |
| 1/4″-28 Taper Thread (SAE-LT) | Thread has a 3/4″ taper per foot and a pitch diameter smaller than standard pipe threads; commonly used for lubrication fittings. |
| 1/4″-28 Special Taper Drive Thread | Thread-forming design that creates threads in the mating part during installation. |
| 1/8″ Pipe Special Taper Drive Thread | Thread-forming design used where tapping is not required prior to installation. |
Grease Fitting Abbreviations Explained
Many grease fitting symbols are built from standardized abbreviations. Understanding these abbreviations makes it easier to decode unfamiliar thread callouts and avoid incorrect substitutions.
| Abbreviation | Designation |
| N | American Standard |
| P | Pipe |
| T | Taper |
| F | Fuel |
| S | Straight |
| M | Mechanical |
| I | Intermediate |
| LT | Lubrication Thread |
Why Grease Fitting Symbols Matter
Selecting the wrong grease fitting — even if it appears to “fit” — can cause:
- grease leakage
- improper sealing
- damage to tapped ports
- reduced lubrication effectiveness
Thread form, taper, and sealing method all affect how grease is delivered to bearings, bushings, and moving components. Understanding grease fitting symbols ensures compatibility with existing equipment, improves service life, and supports consistent maintenance practices.
