Retaining Ring Kit / RRK-ERIS Specs

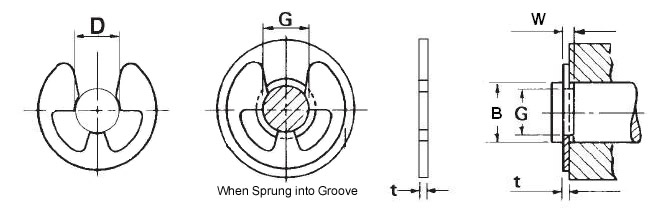

Listed below are ring, groove, and other specifications for every retaining ring included in SAE Products Stainless Steel E-Ring kit part number RRK-ERIS.  Display units are in inches.

 Click here to go back to retaining ring kits

RETAINING RING KIT


Quantity
In Kit


Application
Diameter
(B)
[in.]

Groove
Diameter
(G)
[in.]
Groove
Width
(W)
[in.]
Groove
Depth

[in.]
Ring
Diameter
(D)
[in.]
Ring
Thickness
(t)
[in.]

(100)
0.094
0.074
0.020
0.010
0.073
0.015

(100)
0.110
0.079
0.020
0.015
0.076
0.015

(100)
0.125
0.095
0.020
0.015
0.094
0.015

(100)
0.140
0.102
0.020
0.019
0.100
0.015

(100)
0.140
0.105
0.029
0.017
0.102
0.025

(100)
0.156
0.116
0.029
0.020
0.114
0.025

(50)
0.172
0.127
0.029
0.022
0.125
0.025

(50)
0.188
0.125
0.029
0.031
0.122
0.025

(50)
0.188
0.147
0.029
0.020
0.145
0.025

(50)
0.219
0.188
0.029
0.015
0.185
0.025

(50)
0.250
0.210
0.029
0.020
0.207
0.025

(50)
0.312
0.250
0.029
0.031
0.243
0.025

(20)
0.375
0.303
0.039
0.036
0.300
0.035

(20)
0.438
0.380
0.039
0.029
0.375
0.035

(20)
0.500
0.396
0.046
0.052
0.392
0.042

(10)
0.625
0.485
0.046
0.070
0.480
0.042

(6)
0.750
0.625
0.056
0.062
0.616
0.050

(6)
0.750
0.580
0.056
0.085
0.574
0.050
